Moxon Beam

I built a temporary Moxon beam based almost entirely on the article by Allen Baker, KG4JJH, from QST May 2003, The Black Widow — A Portable 15 Meter Beam. Another useful article is from QST June 2000, Having a Field Day with the Moxon Rectangle, by L.B. Cebik, W4RNL. The original article also references a separate website where drawings for the parts can be downloaded. This not only helped the effort greatly but boosted my confidence that I could actually build a successful antenna. I also note the August 2005 QST article by KG4JJH that described building a dual band, 17 and 12 meter, Moxon. A further reference is here https://www.qsl.net/dk7zb/Moxon/Moxon.htm

My thought in building this beam was to provide coverage to key areas during a contest weekend. In this case it covers 15 meters. It is pointed toward Europe in the mornings and Asia/Pacific in the afternoon with South America and Africa in between. During the contest day I also run my MA6V 20m to 6m vertical. During the evenings I run a HF2V for 80m and 40m.

I found the antenna to go together quite well and it did not need to be tuned. It has low SWR across the 15 meter band. The mast is a 24 foot painter pole that gets a bit wobbly, but is guyed by some nylon rope. The rotator is my arm. It works quite well in to Europe, Africa, and Asia/Pacific. It helped me work my first Japan QSO’s on QRP power levels in the VK/ZL contest earlier this year.

15 Meter Moxon Beam in Action
15 Meter Moxon Beam in Action
Moxon on top of the 20 foot painter pole extension
Moxon on top of the 20 foot painter pole extension

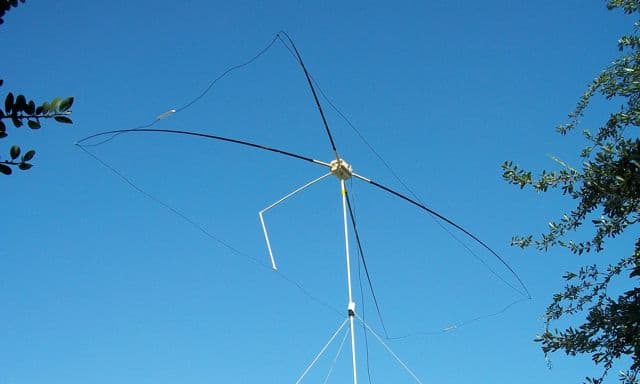

Moxon in the air --- note the PVC pipe that feeds the driven element with coax
Moxon in the air — note the PVC pipe that feeds the driven element with coax

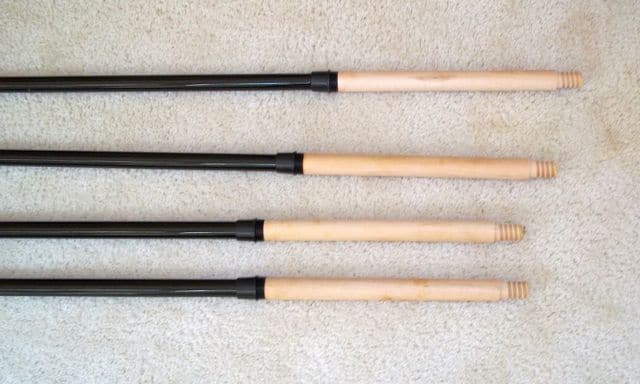

Fishing poles glued to paint roller extensions, which mount into the Moxon center
Fishing poles glued to paint roller extensions, which mount into the Moxon center

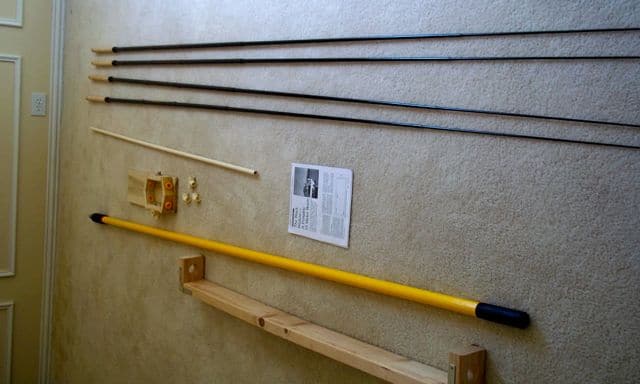

Moxon fishing poles and mast, 2x4 assembly holds it up!
Moxon fishing poles and mast, 2×4 assembly holds it up!

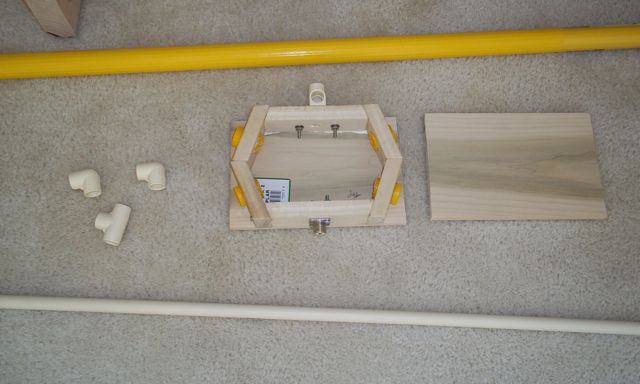

Moxon center for coax feed and connection to mast
Moxon center for coax feed and connection to mast

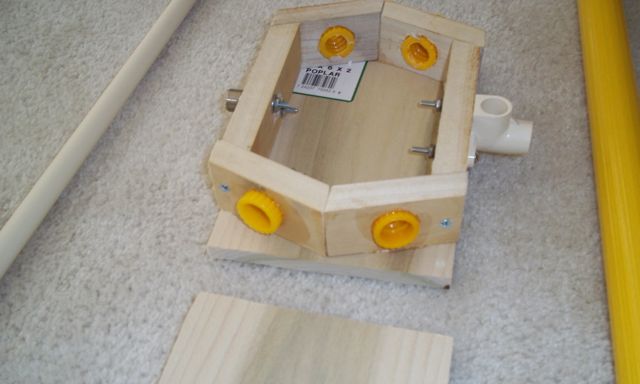

Another view of the Moxon center
Another view of the Moxon center
